National Advisory Committee for Aeronautics (NACA) Method of Double Flush Riveting

A rivet installation technique known as the National Advisory Committee for Aeronautics (NACA) method has primary applications in fuel tank areas. [Figure 1] To make a NACA rivet installation, the shank is upset into a 82° countersink. In driving, the gun may be used on either the head or shank side. The upsetting is started with light blows, then the force increased and the gun or bar moved on the shank end so as to form a head inside the countersink well. If desired, the upset head may be shaved flush after driving. The optimal strength is achieved by cutting the countersink well to the dimensions given in Figure 2. Material thickness minimums must be carefully adhered to.

Figure 1. NACA riveting method

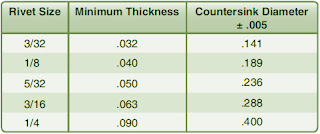

Figure 2
